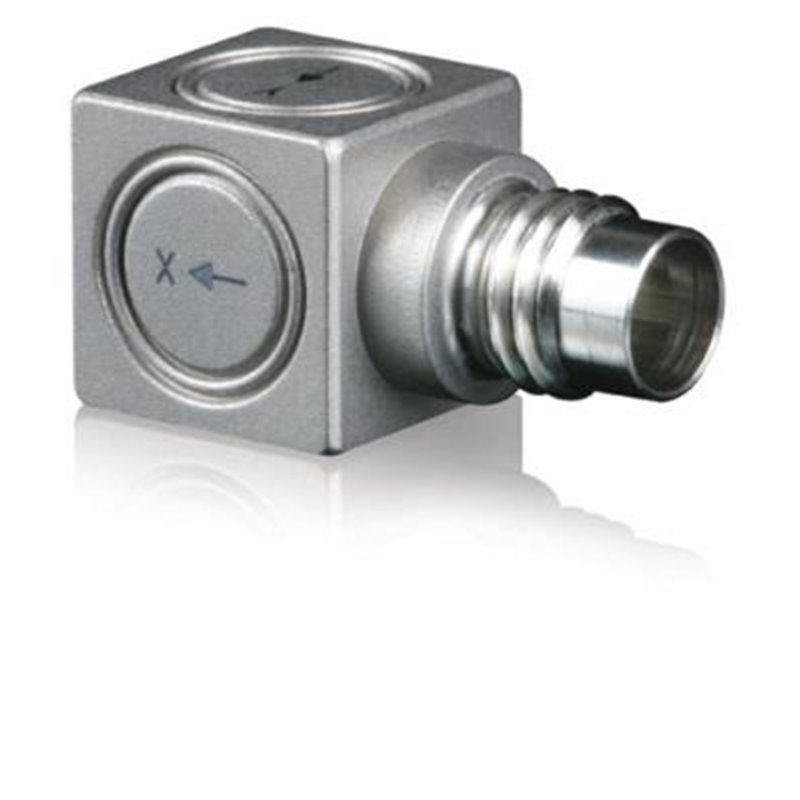

65 Triaxial IEPE Accelerometer
  • 65 Triaxial IEPE Accelerometer

65 Triaxial IEPE Accelerometer

10 mV/g triax, ±500 g, -65°F to +257°F, not isolated, adhesive mount or M2.5 thread, side connector, 5 grams, no cable included
Features
  • Triaxial, low-impedance output
  • Small size (10 mm cube, 5 gm)
  • Ideal for structural analysis, laboratory testing, and modal analysis
  • Single connector, flexible cable
  • 65-10-R and 65-100-R available as replacement sensors
65-10-R

Data sheet

Weight
0.176 oz | 5 gm
Sensitivity
10 mV/g | 1.02 mV/(m/sec2)
Max Frequency (±5%)
10000 Hz
Replacement (-R)
Yes
Output type
Voltage (IEPE)
Max Measurement Range
500 g pk | 4905 m/sec2 pk
Number of Axis
3

Download

Datasheet

Download (940.39k)
