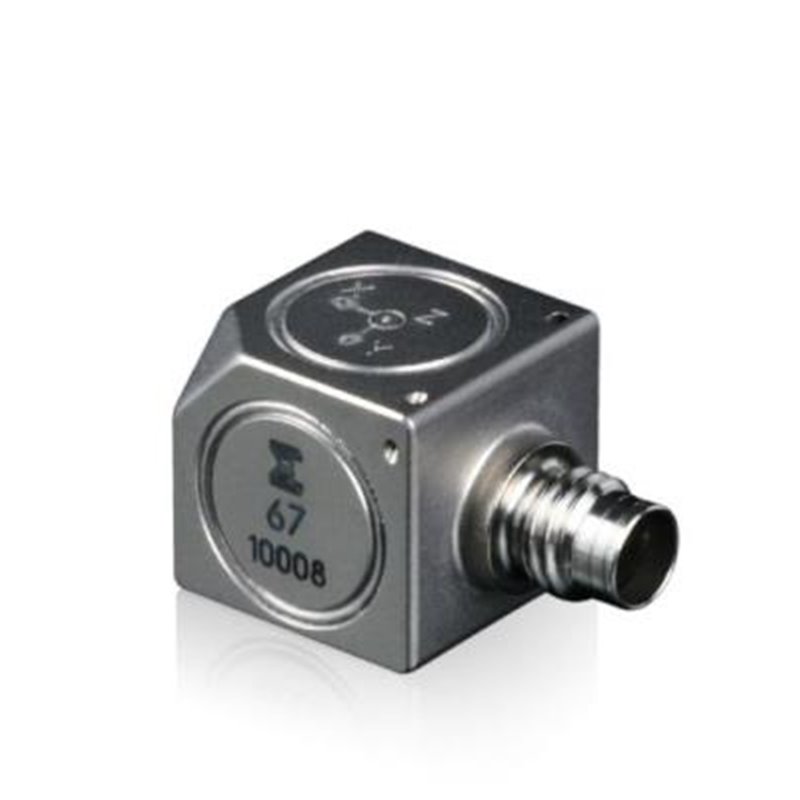

67 High Temperature Triaxial IEPE Accelerometer
10 mV/g triax, ±500 g, -65°F to +347°F, not isolated, adhesive mount or M4 thread, side connector, 14 grams, no cable included
Features
- 67-10-R available as replacement sensor
- Single connector, flexible cable, triaxial accelerometer with low impedance output
- High temperature to 350°F (175°C), high output (100 mV/g), high resolution (Mili-g)
- Ideal for structural analysis and ESS
- Shock-proof, overload-protected
67-10-R
Data sheet
- Output type
- Voltage (IEPE)
- Sensitivity
- 10 mV/g | 1.02 mV/(m/sec2)
- Max Measurement Range
- 500 g pk | 4905 m/sec2 pk
- Max Frequency (±5%)
- 6000 Hz
- Number of Axis
- 3
- Replacement (-R)
- Yes
- Weight
- 0.494 oz | 14 gm
10 mV/g triax, ±500 g, -65°F to +347°F, not isolated, adhesive mount or M4 thread, side connector, 14 grams, no cable included
