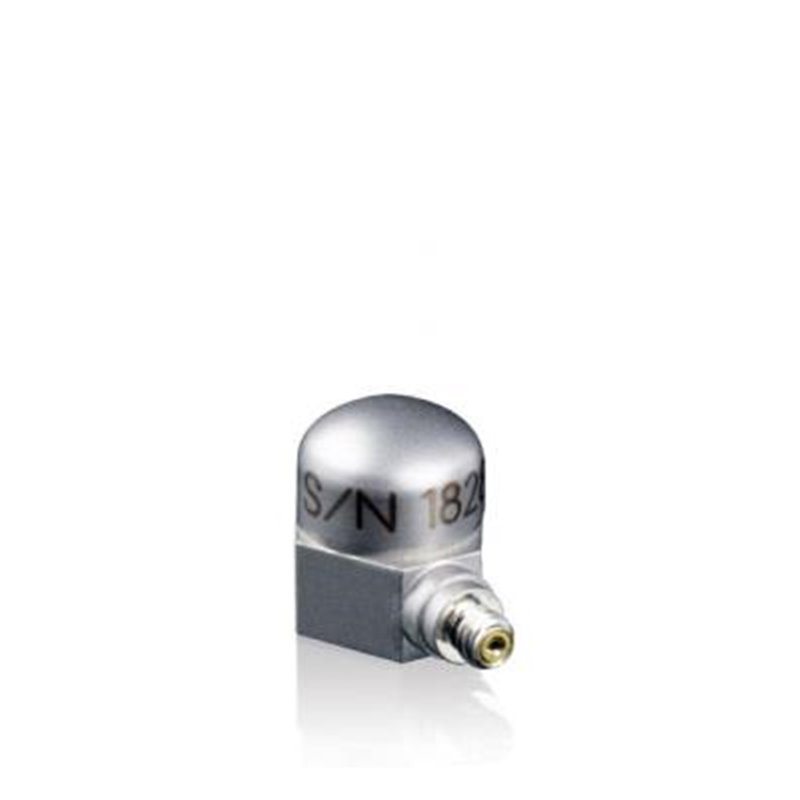

7240C Miniature PE Accelerometer
3 pC/g, -67°F to +500°F, not isolated, 10-32 mounting stud, side connector, 4.8 grams
Features
- Lightweight (4.8 gm)
- Hermetically sealed
- High frequency measurement
- High temperature operation (+260°C)
- Wide bandwidth (Flat to 60 kHz)
7240C
Data sheet
- Max Measurement Range
- 5000 g pk | 49050 m/sec2 pk
- Number of Axis
- 1
- Max Temp
- 500°F | 260°C
- Sensitivity
- 3 pC/g | 0.31 pC/(m/sec2)
- Max Frequency (±5%)
- 5000 Hz
- Replacement (-R)
- No
- Output type
- Charge
3 pC/g, -67°F to +500°F, not isolated, 10-32 mounting stud, side connector, 4.8 grams
