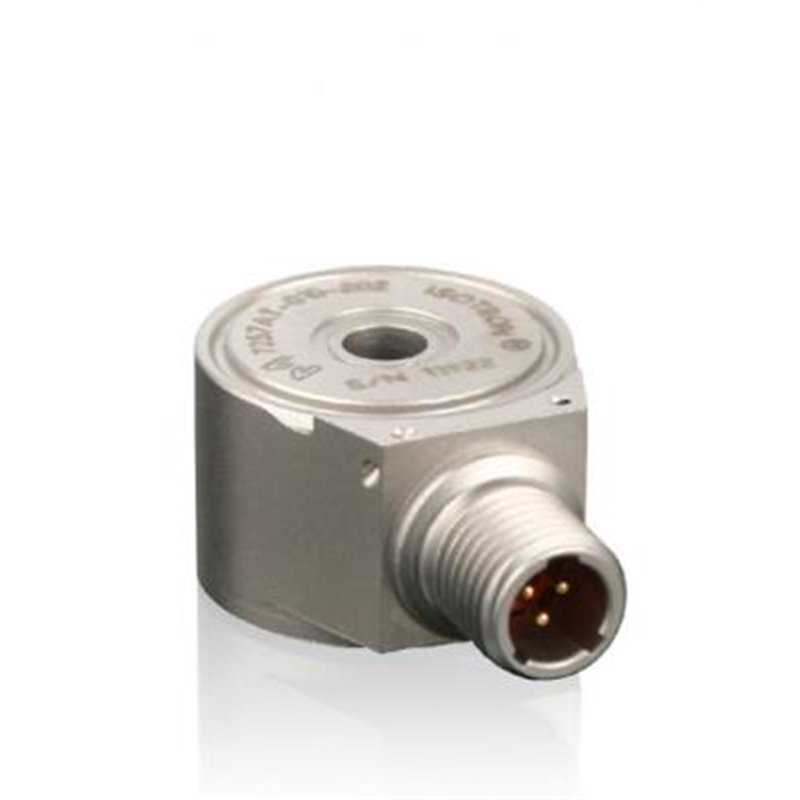

7257AT IEPE Accelerometer
100 mV/g, ±500 g, 2 kHz corner freq, -67°F to +212°F, isolated, thru-hole mount, side connector, 28 grams
Features
- Lightweight (28 gm), hermetically sealed
- 360° cable orientation, ground isolated
- Designed for flight test
- Biased at +2.5 Vdc, operates from +15 to +32 Vdc
- Built-in 4-pole low pass filter
7257AT-100-202
Data sheet
- Number of Axis
- 1
- Weight
- 0.988 oz | 28 gm
- Sensitivity
- 100 mV/g | 10.2 mV/(m/sec2)
- Max Frequency (±5%)
- 2000 Hz
- Replacement (-R)
- No
- Output type
- Voltage (IEPE)
- Max Measurement Range
- 25 g pk | 245 m/sec2 pk
100 mV/g, ±500 g, 2 kHz corner freq, -67°F to +212°F, isolated, thru-hole mount, side connector, 28 grams
