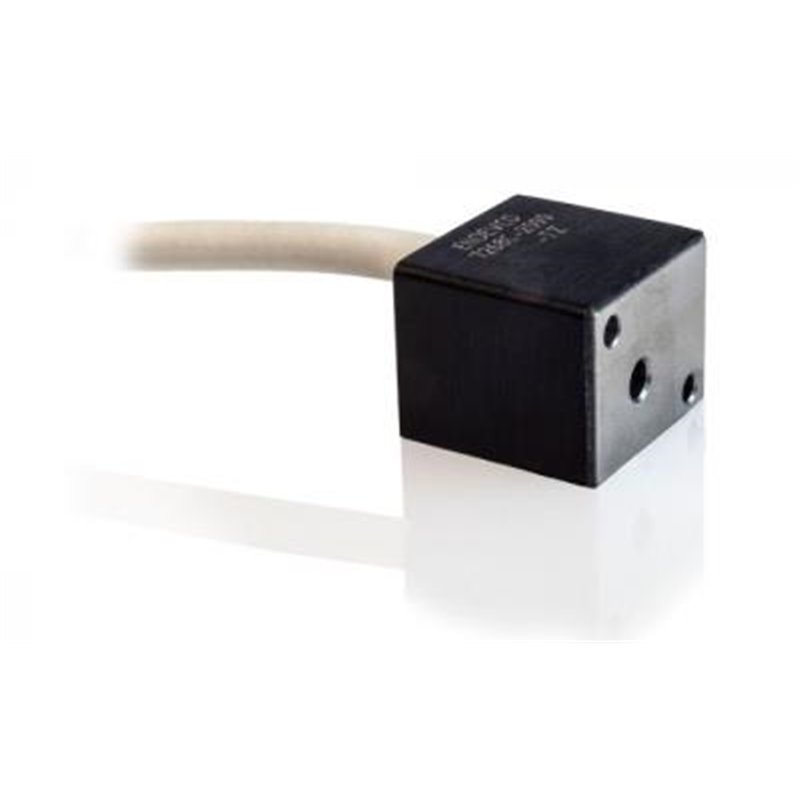

7268C Triaxial Shock Accelerometer
500 g, triaxial, undamped, screw mount, 2% transverse sensitivity, 50mV ZMO, 30 ft cable, 5V excitation
Features
- 500 g and 2000 g full scale ranges
- Crash and shock testing
- DC response - long duration transients
- Small size, rugged
- Mechanical overtravel stops
7268C-500TZ-5
Data sheet
- Output type
- Voltage (MEMS)
- Max Frequency (±5%)
- 3000 Hz
- Number of Axis
- 3
- Damping
- No
500 g, triaxial, undamped, screw mount, 2% transverse sensitivity, 50mV ZMO, 30 ft cable, 5V excitation
