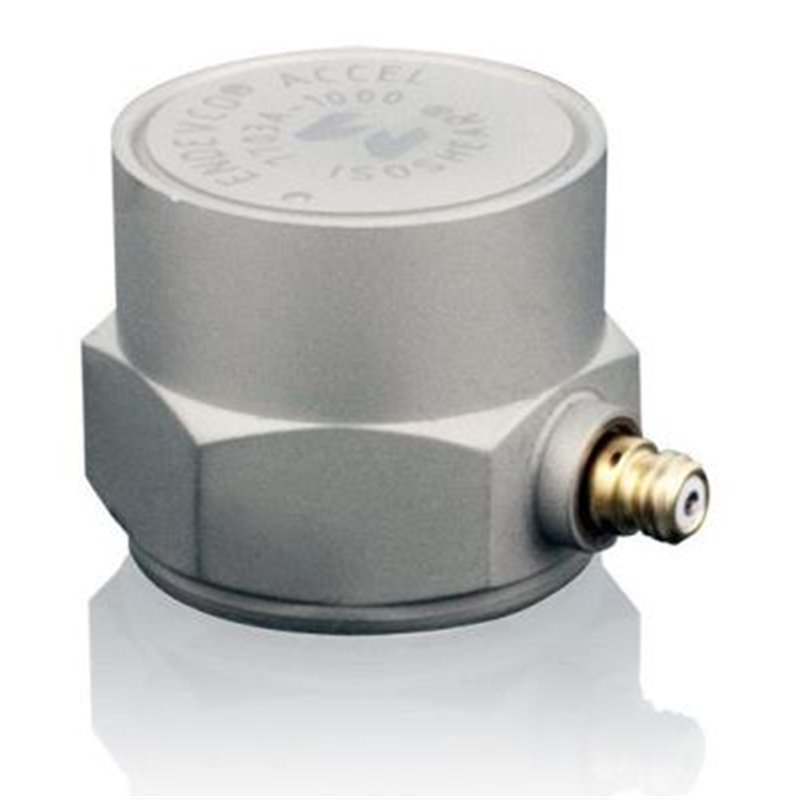

7703A PE Accelerometer
1000 pC/g, radiation hardened, -67°F to +550°F, isolated, 10-32 mounting stud, side connector, 120 grams
Features
- 7703A-1000-R available
- Low base strain sensitivity, ground isolated
- Side connector, 1" hex, hermetically sealed
- To +550°F (+288°C), temperature compensated
- High output / modal applications, radiation environment up to 108rads
7703A-1000
Data sheet
- Max Temp
- 550°F | 288°C
- Sensitivity
- 1000 pC/g | 102 pC/(m/sec2)
- Max Frequency (±5%)
- 2000 Hz
- Replacement (-R)
- No
- Output type
- Charge
- Max Measurement Range
- 500 g pk | 4905 m/sec2 pk
- Number of Axis
- 1
1000 pC/g, radiation hardened, -67°F to +550°F, isolated, 10-32 mounting stud, side connector, 120 grams
