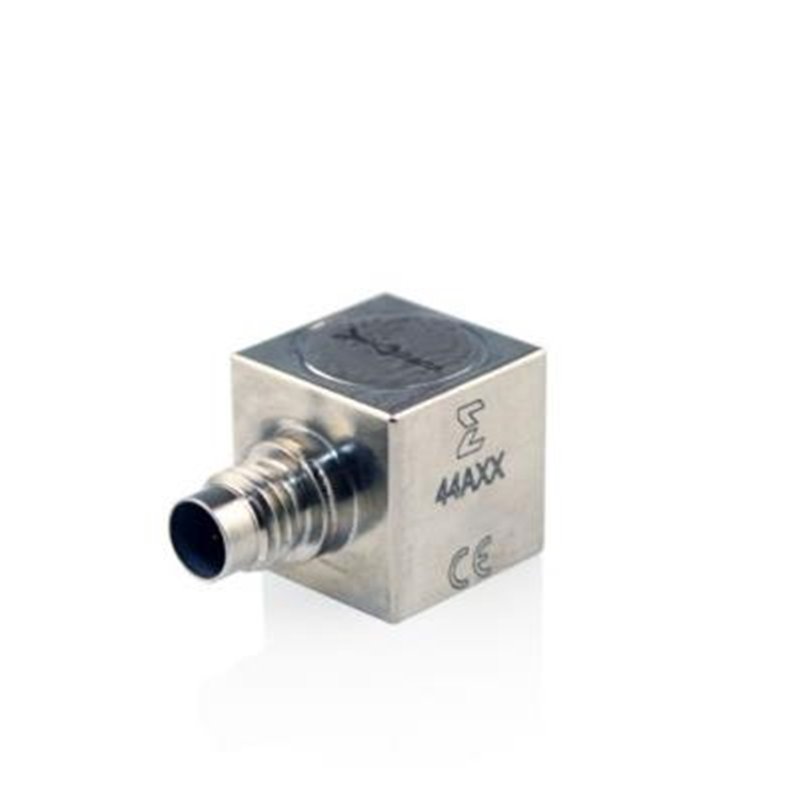

44A Triaxial IEPE TEDS Accelerometer
100 mV/g triax, ±50 g, TEDS, -67°F to +257°F, no stud, 10-32 cube, side connector, 13 grams, no cable incl.
Features
- Single, threaded 1/4-28 4 pin connector triaxial Isotron® accelerometer
- Wide frequency bandwidth
- Lightweight (13 gm), hermetically sealed
- Small 14 mm cube size
- IEEE P1451.4 TEDS capable
44A16-1032
Data sheet
- Output type
- Voltage (IEPE)
- Sensitivity
- 100 mV/g | 10.2 mV/(m/sec2)
- Max Measurement Range
- 50 g pk | 491 m/sec2 pk
- Max Frequency (±5%)
- 5000 Hz
- Number of Axis
- 3
- Replacement (-R)
- No
- Weight
- 0.459 oz | 13 gm
100 mV/g triax, ±50 g, TEDS, -67°F to +257°F, no stud, 10-32 cube, side connector, 13 grams, no cable incl.
