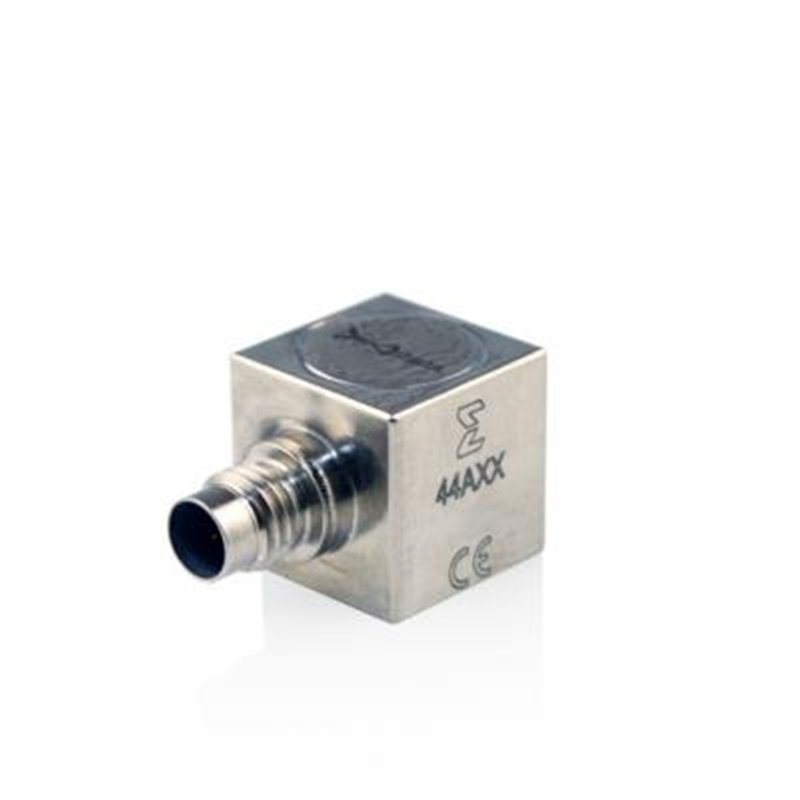

44A Triaxial IEPE TEDS Accelerometer
25 mV/g triax, ±200 g, TEDS, -67°F to +257°F, 1/4-28 stud, 14mm cube, side connector, 13 grams, no cable incl.
Features
- Single, threaded 1/4-28 4 pin connector triaxial Isotron® accelerometer
- Wide frequency bandwidth
- Lightweight (13 gm), hermetically sealed
- Small 14 mm cube size
- IEEE P1451.4 TEDS capable
44A14-2528
Data sheet
- Weight
- 0.459 oz | 13 gm
- Sensitivity
- 25 mV/g | 2.5 mV/(m/sec2)
- Max Frequency (±5%)
- 5000 Hz
- Replacement (-R)
- No
- Output type
- Voltage (IEPE)
- Max Measurement Range
- 200 g pk | 1962 m/sec2 pk
- Number of Axis
- 3
